7/64" 4-Flute Solid Carbide Square End Mill, TiCN - ProMax 111-00712

ProMax

7/64" 4-Flute Solid Carbide Square End Mill, TiCN - ProMax 111-00712

MFR# 111-00712Series 111

$12.67List $16.25 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter7/64
Flutes4
MaterialSolid Carbide
CoatingTiCN

Description

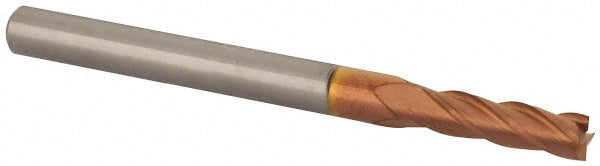

The ProMax 111-00712 is a 7/64 4-flute Solid Carbide (Micrograin) square end mill. 3/8 length of cut, 1-1/2 overall length. Series 111.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle40
Length of cut in3/8
Length of cut range0.3000 - 0.5000
Material gradeMicrograin
Mill diameter in7/64
Mill diameter tolerance+0.0000/-0.0005 in
Number of flutes4
Overall length in1-1/2
Shank diameter in1/8
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeSquare
Variable helixNo
