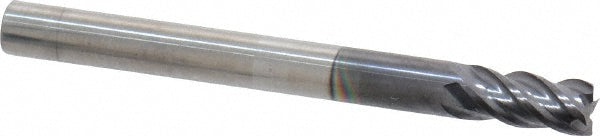

3/16" 4-Flute Solid Carbide Square End Mill, AlTiN - ProMax 155-01224

ProMax

3/16" 4-Flute Solid Carbide Square End Mill, AlTiN - ProMax 155-01224

MFR# 155-01224Series 155

$34.06List $43.68 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/16
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The ProMax 155-01224 is a 3/16 4-flute Solid Carbide (Micrograin) square end mill. 3/8 length of cut, 2 overall length. Series 155.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle35
Length of cut in3/8
Length typeStub
Material gradeMicrograin
Mill diameter in3/16
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in2
Shank diameter in3/16
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeSquare
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

OSG3/16" 4-Flute Solid Carbide Square End Mill, TiAlN - OSG 414-187511 $18.61 SGS3/16" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 31255 $18.39 Supermill3/16" 4-Flute Solid Carbide Corner Radius End Mill, AlTiN - Supermill 5253666 $30.01 Hertel3/16" 4-Flute Solid Carbide Square End Mill, TiCN - Hertel 750399 $15.25
