ProMax

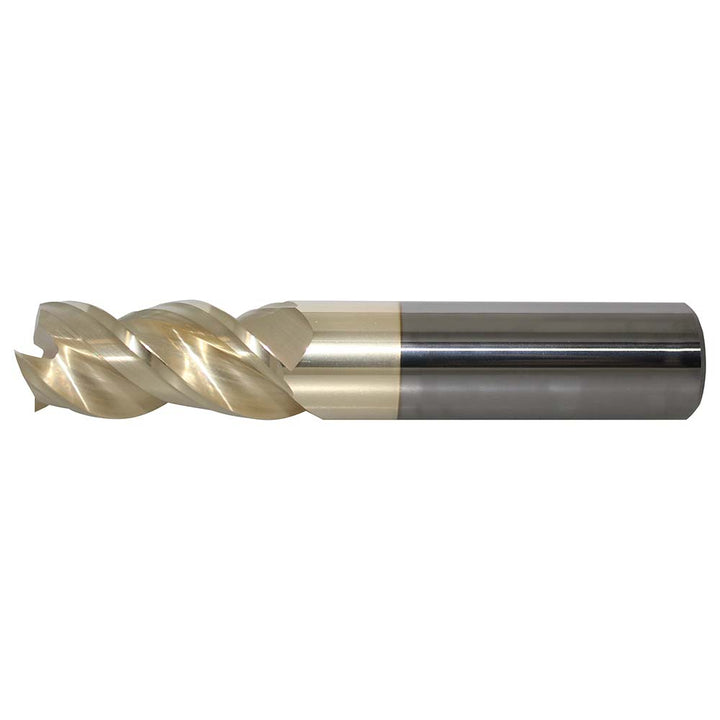

1" 3-Flute Solid Carbide Square End Mill, ZrN - ProMax US362392

MFR# US362392Series US362

$355.66List $456.15 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1

Flutes3

MaterialSolid Carbide

CoatingZrN

Description

The ProMax US362392 is a 1 3-flute Solid Carbide (Micrograin) square end mill with a ZrN finish for longer tool life. Suited for aluminum & non-ferrous. 3-1/4 length of cut, 6 overall length. Series US362.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishZrN

Coating finish familyZrN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle46-48

Length of cut in3-1/4

Length of cut range2.0000+

Length typeStandard

Material gradeMicrograin

Mill diameter in1

Mill diameter tolerance+0.0000/-0.0020 in

Number of flutes3

Overall length in6

Primary workpiece materialAluminum & Non-Ferrous

Shank diameter in1

Shank diameter tolerance-0.0001/-0.0004 in

Shank typeStraight

Single or double endSingle

System of measurementFractional Inch

Variable helixYes

Variable indexYes
