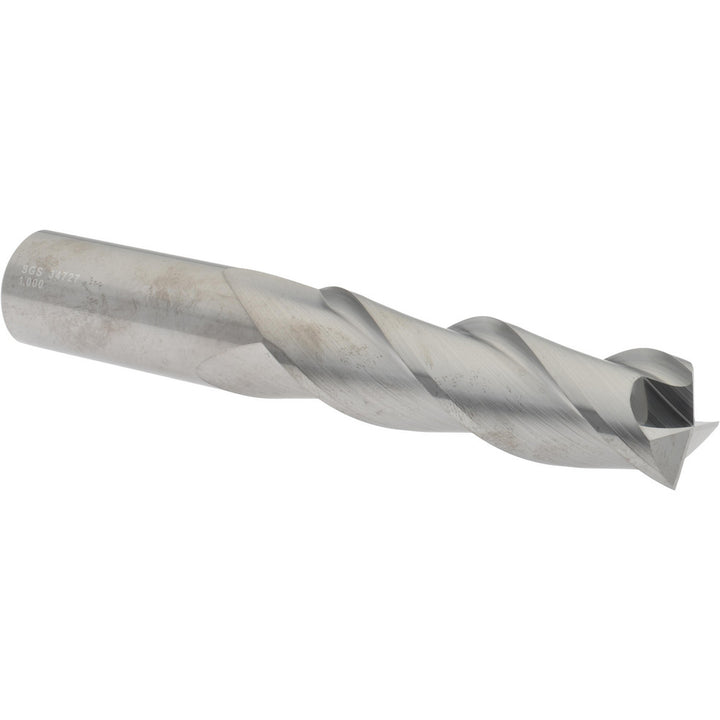

1" 3-Flute Solid Carbide Square End Mill - SGS 34727

SGS

1" 3-Flute Solid Carbide Square End Mill - SGS 34727

MFR# 34727Series 43

$457.42List $586.66 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1
Flutes3
MaterialSolid Carbide

Description

The SGS 34727 is a 1 3-flute Solid Carbide square end mill. Suited for non-ferrous metal. 3-1/4 length of cut, 6 overall length. Series 43.

Specifications

CentercuttingNo
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut in3-1/4
Length of cut range2.0000+
Length typeRegular
Mill diameter in1
Mill diameter tolerance+0.00000/-0.00051 in
Number of flutes3
Overall length in6
Primary workpiece materialNon-Ferrous Metal
Shank diameter in1
Shank diameter tolerance+0.00000/-0.00051 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
