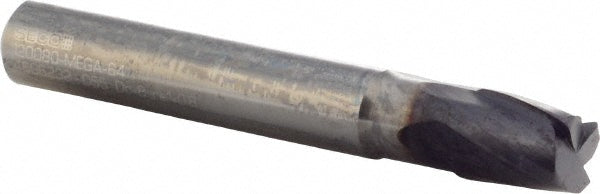

0.3150" 4-Flute Solid Carbide Corner Radius End Mill, MEGA-64 - Seco 00019481

MFR# 00019481Series JH120

$178.63List $221.40 Save 19%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingMEGA-64

Description

The Seco 00019481 is a 0.3150 4-flute Solid Carbide corner radius end mill with a MEGA-64 finish for longer tool life. Suited for hard material. Series JH120.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishMEGA-64

Coolant throughNo

Corner radius0.0315

Corner radius tolerance+0.05000 to -0.05000 mm

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

Helix styleMedium

Length of cut0.3937

Length typeShort

Material applicationHard Material

Material removal typeRoughing

Mill diameter0.3150

Mill diameter tolerance-0.02/-0.03 mm

Neck diameter0.2910

Number of flutes4

Overall length (mm)60.00

Primary workpiece materialHard Material

Reach length0.7087

Shank diameter (mm)8.00

Shank diameter toleranceh5

Shank typeStraight-Cylindrical

Single or double endSingle

Tir maximum0.0004

Variable helixNo

Variable indexNo
