Seco

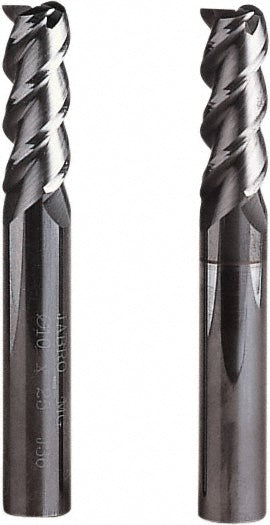

0.1575" 3-Flute Solid Carbide Corner Radius End Mill, MEGA - Seco 00025628

MFR# 00025628Series J36

$58.74List $72.80 Save 19%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes3

MaterialSolid Carbide

CoatingMEGA

Description

The Seco 00025628 is a 0.1575 3-flute Solid Carbide corner radius end mill with a MEGA finish for longer tool life. Suited for steel, non-ferrous metal. Series J36.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishMEGA

Coolant throughNo

Corner radius0.0039

Corner radius tolerance2.00 to 12.00 mm

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix styleHigh

Length of cut1.2500

Length typeShort

Material applicationSteel; Non-Ferrous Metal

Material removal typeRoughing

Mill diameter0.1575

Mill diameter tolerance-0.02 to -0.03 mm

Number of flutes3

Overall length (mm)50.00

Primary workpiece materialSteel; Non-Ferrous Metal

Shank diameter (mm)4.00

Shank diameter toleranceh5

Shank typeStraight-Cylindrical

Single or double endSingle

Tir maximum0.0008

Variable helixNo

Variable indexNo
