0.1575" 3-Flute Solid Carbide Square End Mill, AlTiN - SGS 49493

MFR# 49493Series 5XLM

$34.77List $44.60 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes3

MaterialSolid Carbide

CoatingAlTiN

Description

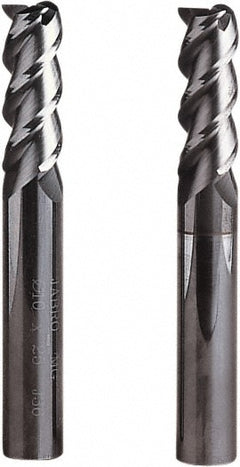

The SGS 49493 is a 0.1575 3-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. 0.9843 length of cut. Series 5XLM.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut0.9843

Length of cut range0.8000 - 1.0000

Length typeExtra Long

Material gradeMicrograin

Mill diameter0.1575

Mill diameter tolerance+0.000/-0.050 mm

Number of flutes3

Overall length (mm)75

Shank diameter0.1575

Shank diameter tolerance+0.000/-0.008 mm

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
