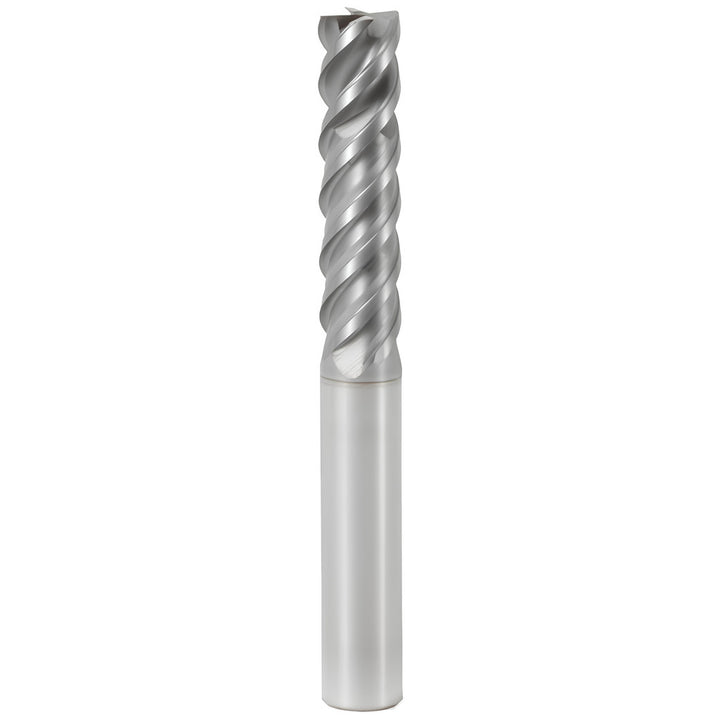

0.2362" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, SIRON-A - Seco 02733827

MFR# 02733827Cat# 554L060Z4.3-SIRON-ASeries JS554

$83.65List $103.68 Save 19%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingSIRON-A

Description

The Seco 02733827 is a 0.2362 4-flute Solid Carbide corner radius & corner chamfer end mill with a SIRON-A finish for longer tool life. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium. Series JS554.

Specifications

Additional informationShouldering; Slotting; Rampdown; Helical Interpolation; Drill Mill; Plunging & Recessing

CentercuttingYes

Chamfer angle45

Chamfer length (mm)0.08

Chamfer width0.0032

ChipbreakerNo

Coating finishSIRON-A

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle48

Helix styleHigh

Length of cut0.9055

Length typeRegular

Manufacturers catalog number554L060Z4.3-SIRON-A

Material removal typeRoughing & Finishing

Mill diameter0.2362

Mill diameter toleranceh5

Number of flutes4

Overall length (mm)65.00

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium

Reach length (mm)23.00

Shank diameter (mm)6.00

Shank diameter toleranceh5

Shank typeWeldon Flat

Single or double endSingle

Variable helixNo

Variable indexNo
