Seco

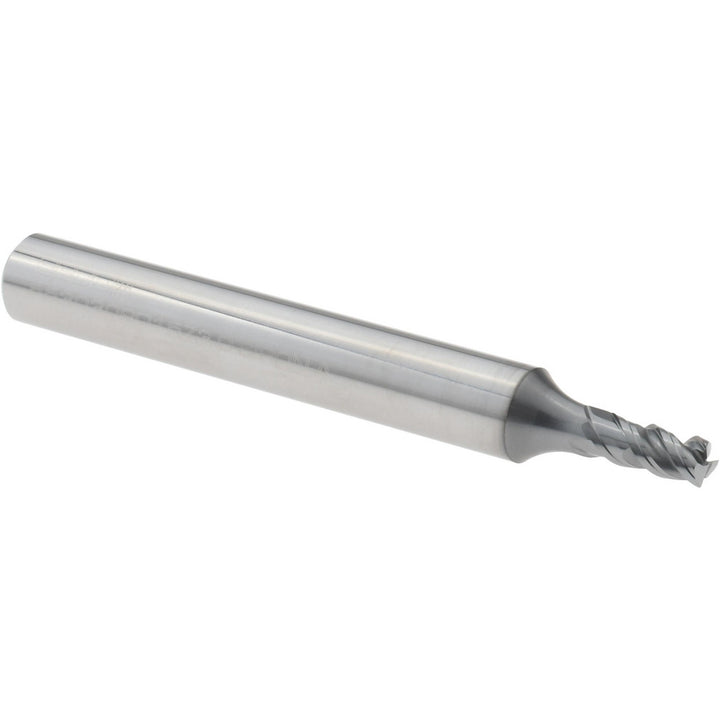

0.1181" 3-Flute Solid Carbide Corner Radius End Mill, SIRON-A - Seco 02733908

MFR# 02733908Series JS553

$64.57List $80.03 Save 19%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes3

MaterialSolid Carbide

CoatingSIRON-A

Description

The Seco 02733908 is a 0.1181 3-flute Solid Carbide corner radius end mill with a SIRON-A finish for longer tool life. Suited for steel, stainless steel, cast iron, hard material, high temperature alloy, non-ferrous metal. Series JS553.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishSIRON-A

Coolant throughNo

Corner radius0.0059

Corner radius tolerance+0.02000 to -0.02000 mm

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

Helix styleHigh

Length of cut0.2756

Length typeShort

Material applicationSteel; Stainless Steel; Cast Iron; Hard Material; High-Temperature Alloy; Non-Ferrous Metal

Material removal typeRoughing

Mill diameter0.1181

Mill diameter tolerance-0.01/-0.02 mm

Neck diameter0.1180

Number of flutes3

Overall length (mm)50.00

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material; High Temperature Alloy; Non-Ferrous Metal

Reach length (mm)8.50

Shank diameter (mm)6

Shank diameter toleranceh5

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
