Seco

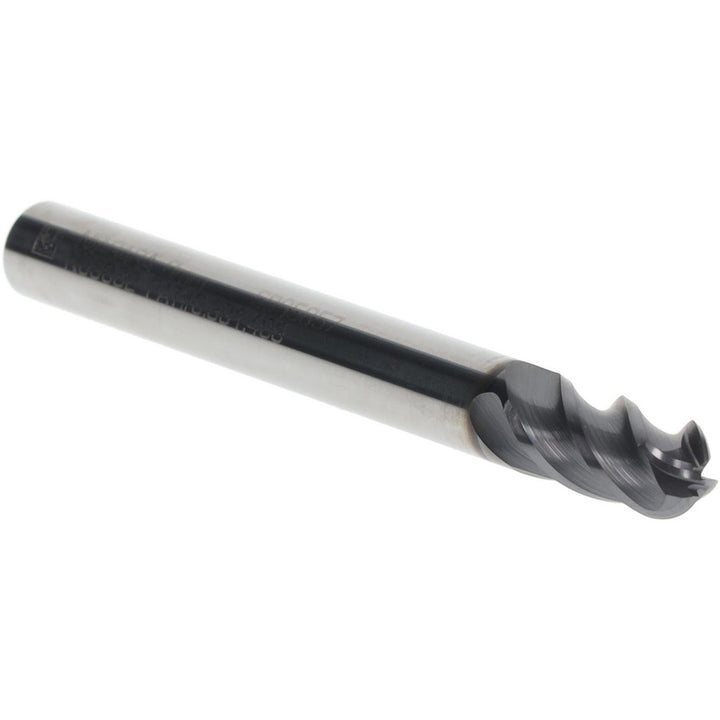

0.2362" 4-Flute Solid Carbide Ball End Mill, AlTiN - Seco 03083983

MFR# 03083983Cat# STB440M.2-060-D2-B.0-Z4Series STB440M.2

$49.28List $63.21 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The Seco 03083983 is a 0.2362 4-flute Solid Carbide (Micrograin) ball end mill with a AlTiN finish for longer tool life. Suited for stainless steel, superalloys & titanium, hard material. Series STB440M.2.

Specifications

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix styleVariable

Length of cut (mm)12.00

Length typeShort

Manufacturers catalog numberSTB440M.2-060-D2-B.0-Z4

Material gradeMicrograin

Material removal typeRoughing & Finishing

Mill diameter0.2362

Mill diameter tolerance+0.00/-0.05 mm

Nose radius (mm)3.00

Number of flutes4

Overall length (mm)58.00

Overall length tolerance+1.52/-1.52 mm

Primary workpiece materialStainless Steel; Superalloys & Titanium; Hard Material

Reach length (mm)12.00

Shank diameter (mm)6.00

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementMetric

Tir maximum0.0005

Variable helixYes

Variable indexNo
