Seco

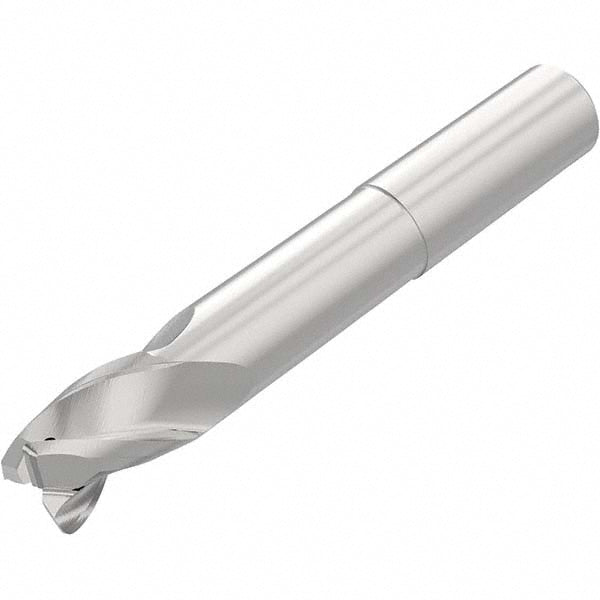

1/2" 3-Flute Solid Carbide Corner Radius End Mill - Seco 03302641
MFR# 03302641Series AN335R
$215.83List $259.72
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/2
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The Seco 03302641 is a 1/2 3-flute Solid Carbide corner radius end mill. Suited for non-ferrous metal. 3/4 length of cut, 4 overall length. Series AN335R.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Corner radius0.0300
Corner radius tolerance+0.00100 to -0.00100 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
For use withToolholders
Helix styleMedium
Length of cut in3/4
Length typeLong
Mill diameter in1/2
Mill diameter tolerance+0.002000 in
Neck diameter0.4700
Number of flutes3
Overall length in4
Overall length tolerance+0.0600/-0.0600 in
PitchCoarse
Primary workpiece materialNon-Ferrous Metal
Reach length in2-1/4
Shank diameter in1/2
Shank diameter tolerance-0.0001 - -0.0004 in
Shank typeStraight-Cylindrical
Single or double endSingle
Tir maximum0.0005
Variable helixNo
Variable indexNo
