Seco

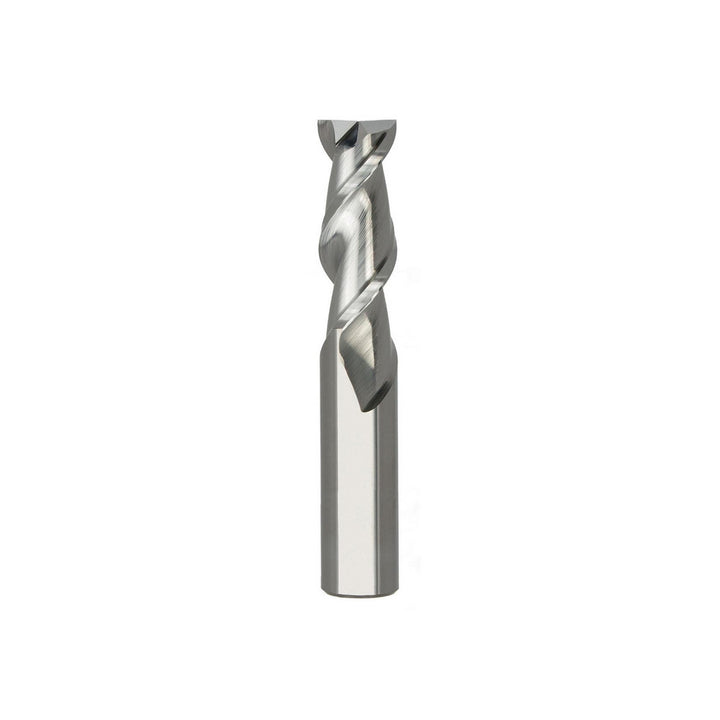

5/8" 2-Flute Solid Carbide Square End Mill - Seco 17002981
MFR# 17002981Series A245
$160.62List $206.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/8
Flutes2
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The Seco 17002981 is a 5/8 2-flute Solid Carbide (Micrograin) square end mill. Suited for aluminum & non-ferrous. 1-5/8 length of cut, 3-1/2 overall length. Series A245.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coating finish familyBright/Uncoated
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle45
Length of cut in1-5/8
Length of cut range1.5000 - 2.0000
Material gradeMicrograin
Mill diameter in5/8
Mill diameter tolerance+0.0000 to -0.0020 in
Number of flutes2
Overall length in3-1/2
Overall length tolerance+0.0600/-0.0600 in
Primary workpiece materialAluminum & Non-Ferrous
Shank diameter in5/8
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeStraight
Single or double endSingle
System of measurementFractional Inch
Tir maximum0.0005
Variable helixNo
Variable indexNo
