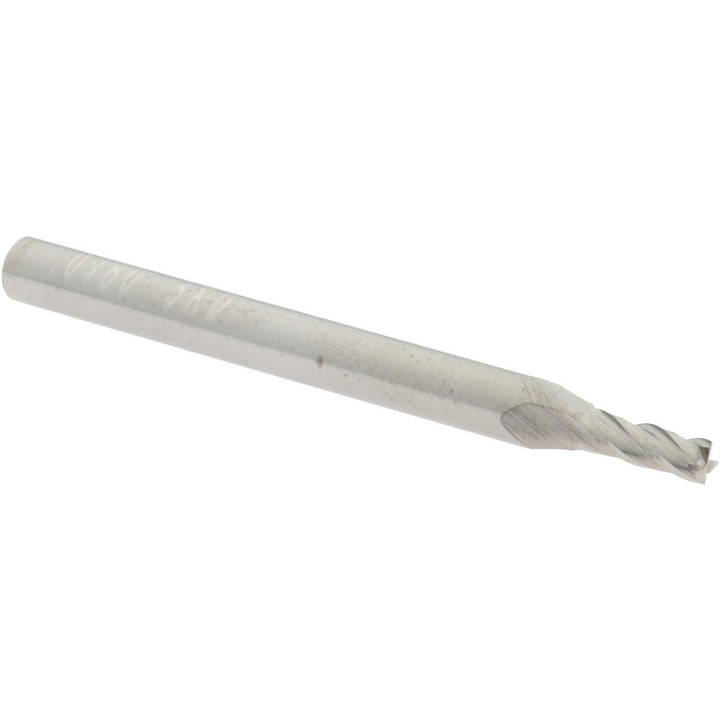

5/64" 4-Flute Solid Carbide Square End Mill - SGS 00573

SGS

5/64" 4-Flute Solid Carbide Square End Mill - SGS 00573

MFR# 00573Series 1810

$13.31List $17.07 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/64
Flutes4
MaterialSolid Carbide

Description

The SGS 00573 is a 5/64 4-flute Solid Carbide (Micrograin) square end mill. 15/64 length of cut, 1-1/2 overall length. Series 1810.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut in15/64
Length of cut range0.2000 - 0.3000
Length typeRegular
Material gradeMicrograin
Mill diameter in5/64
Mill diameter tolerance+0.0000/-0.0008 in
Number of flutes4
Overall length in1-1/2
Shank diameter in1/8
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
