19/64" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 30009

SGS

19/64" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 30009

MFR# 30009Series 1

$36.98List $47.44 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter19/64
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

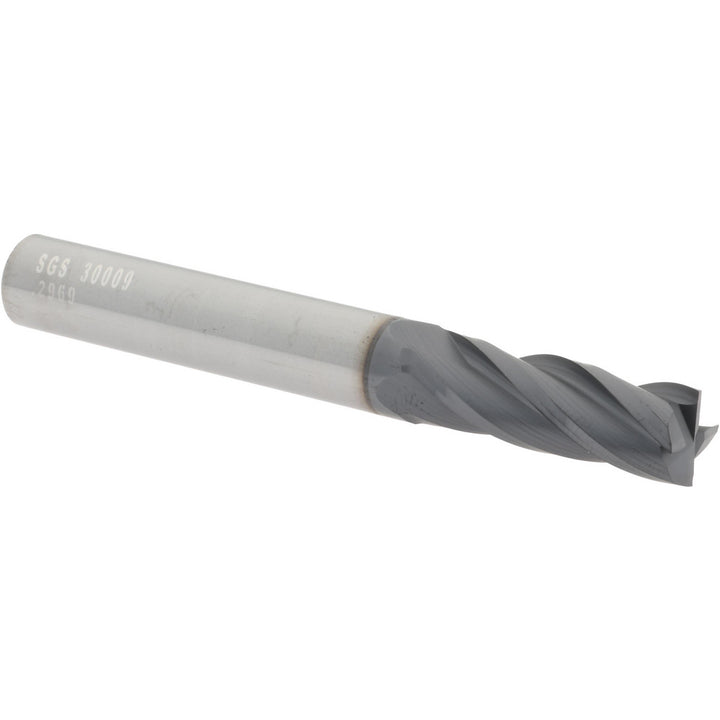

The SGS 30009 is a 19/64 4-flute Solid Carbide (Micrograin) square end mill. 13/16 length of cut, 2-1/2 overall length. Series 1.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in13/16
Length typeRegular
Material gradeMicrograin
Mill diameter in19/64
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in2-1/2
Shank diameter in5/16
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexYes
