3/16" 3-Flute Solid Carbide Square End Mill - SGS 30523

SGS

3/16" 3-Flute Solid Carbide Square End Mill - SGS 30523

MFR# 30523Series 5

$19.29List $24.74 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/16
Flutes3
MaterialSolid Carbide

Description

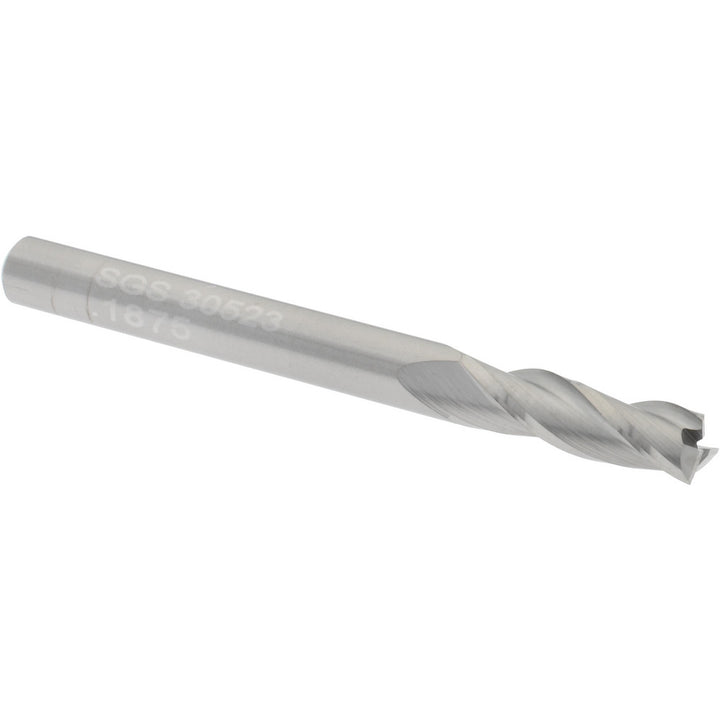

The SGS 30523 is a 3/16 3-flute Solid Carbide (Micrograin) square end mill. 5/8 length of cut, 2 overall length. Series 5.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in5/8
Length of cut range0.6000 - 0.7000
Length typeRegular
Material gradeMicrograin
Mill diameter in3/16
Mill diameter tolerance-0.001/-0.002 in
Number of flutes3
Overall length in2
Shank diameter in3/16
Shank diameter tolerance+0.00000/-0.00032 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

GWS3/16" 3-Flute Solid Carbide Square End Mill, ZrN - GWS 100952 $48.71 RobbJack3/16" 3-Flute Solid Carbide Square End Mill - RobbJack C1-301-06 $36.70 ProMax3/16" 3-Flute Solid Carbide Square End Mill, ZrN - ProMax 109-01216 $26.35 ProMax0.1875" 3-Flute Solid Carbide Corner Radius End Mill, AlTiN - ProMax 119-01214 $45.54
