SGS

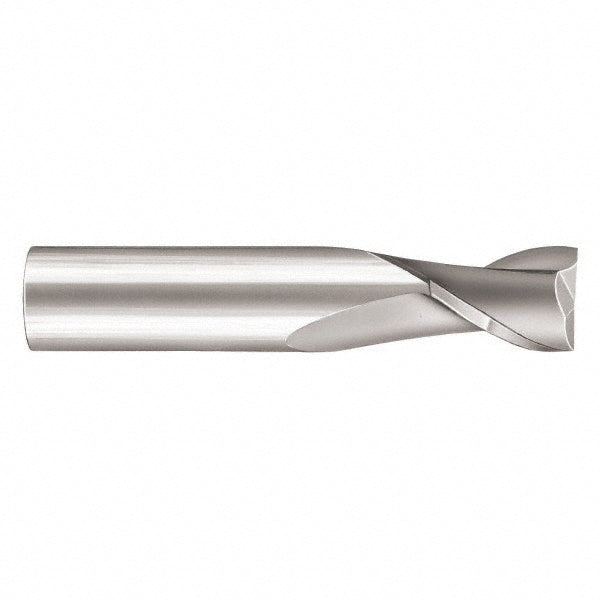

1/4" 2-Flute Solid Carbide Square End Mill, AlTiN - SGS 31364

MFR# 31364Series 17

$22.40List $28.72 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes2

MaterialSolid Carbide

CoatingAlTiN

Description

The SGS 31364 is a 1/4 2-flute Solid Carbide (Micrograin) square end mill with a AlTiN finish for longer tool life. 1/2 length of cut, 2 overall length. Series 17.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in1/2

Length of cut range0.5000 - 0.6000

Length typeStub

Material gradeMicrograin

Mill diameter in1/4

Mill diameter tolerance+0.000/-0.002 in

Number of flutes2

Overall length in2

Shank diameter in1/4

Shank diameter tolerance+0.00000/-0.00035 in

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo

Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.
