SGS

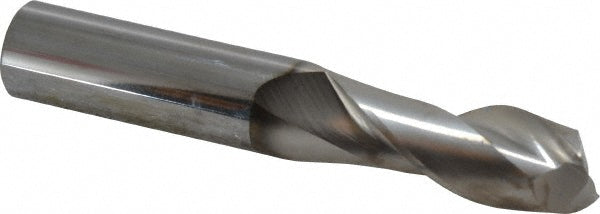

5/8" 2-Flute Solid Carbide Square End Mill, TiB2 - SGS 34666
MFR# 34666Series 47
$202.97List $260.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter5/8
Flutes2
MaterialSolid Carbide
CoatingTiB2
Description
The SGS 34666 is a 5/8 2-flute Solid Carbide square end mill. Suited for non-ferrous metal. 1-5/8 length of cut, 3-3/4 overall length. Series 47.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishTiB2
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle35
Length of cut in1-5/8
Length of cut range1.5000 - 2.0000
Length typeRegular
Mill diameter in5/8
Mill diameter tolerance-0.0001/-0.0004 in
Number of flutes2
Overall length in3-3/4
Primary workpiece materialNon-Ferrous Metal
Shank diameter in5/8
Shank diameter tolerance+0.00000/-0.00043 in
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
