SGS

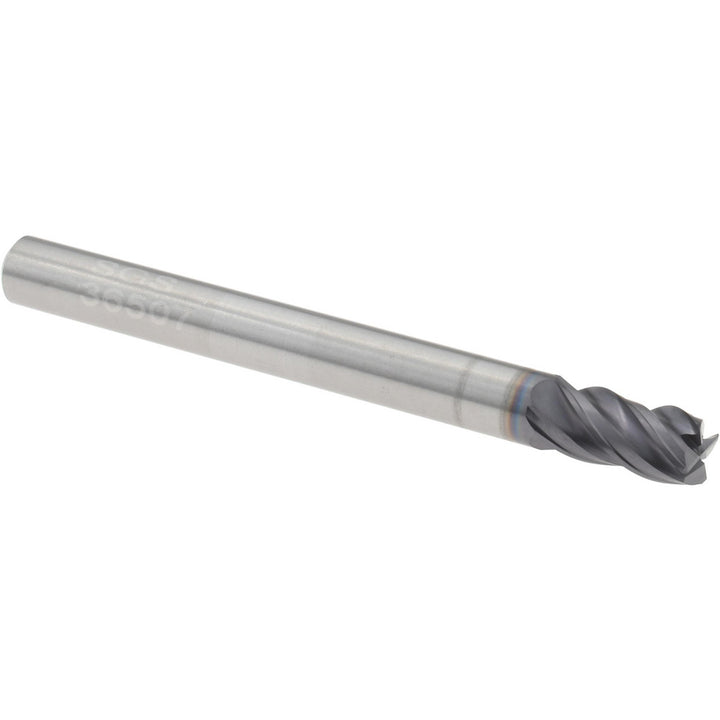

3/16" 4-Flute Solid Carbide Corner Radius End Mill, TX - SGS 36507

MFR# 36507Series Z16C

$27.21List $34.90 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes4

MaterialSolid Carbide

CoatingTX

Description

The SGS 36507 is a 3/16 4-flute Solid Carbide (Micrograin) corner radius end mill with a TX finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium. 3/8 length of cut, 2 overall length. Series Z16C.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishTX

Coolant throughNo

Corner radius0.0150

Corner radius tolerance+0.00000 to -0.00200 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withEnd Mill Toolholders

Length of cut in3/8

Length typeShort

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Material gradeMicrograin

Material removal typeRoughing & Finishing

Mill diameter in3/16

Mill diameter tolerance-0.0012/0.0000 in

Number of flutes4

Overall length in2

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Secondary workpiece materialHard Material

Shank diameter in3/16

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixYes

Variable indexYes
