1/2" 5-Flute Solid Carbide Square End Mill, AlTiN - SGS 37866

SGS

1/2" 5-Flute Solid Carbide Square End Mill, AlTiN - SGS 37866

MFR# 37866Series Z5S

$132.82List $170.35 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes5
MaterialSolid Carbide
CoatingAlTiN

Description

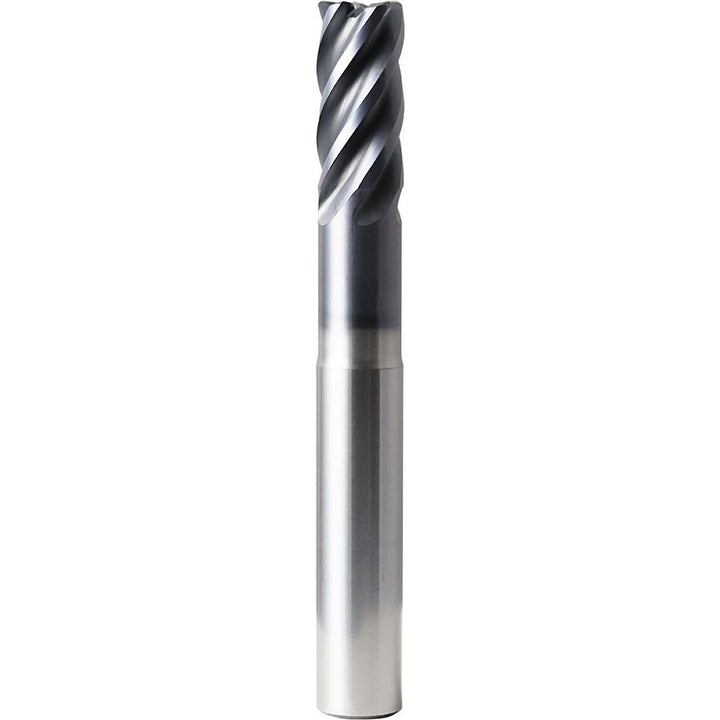

The SGS 37866 is a 1/2 5-flute Solid Carbide (Micrograin) square end mill with a Ti-NAMITE-A finish for longer tool life. Suited for steel, stainless steel, cast iron, high-temp alloy. 1 length of cut, 4 overall length. Series Z5S.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishAlTiN
Coating finish familyAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachYes
Flute directionRight Hand
Flute typeSpiral
Helix angle37
Length of cut in1
Length typeLong
Material gradeMicrograin
Mill diameter in1/2
Number of flutes5
Overall length in4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy
Reach length in2
Shank diameter in1/2
Shank typeStraight
Single or double endSingle
System of measurementFractional Inch
Variable helixNo
Variable indexYes
