SGS

3/16" 3-Flute Solid Carbide Square End Mill, TiN - SGS 39723

MFR# 39723Series 5

$21.50List $27.58 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes3

MaterialSolid Carbide

CoatingTiN

Description

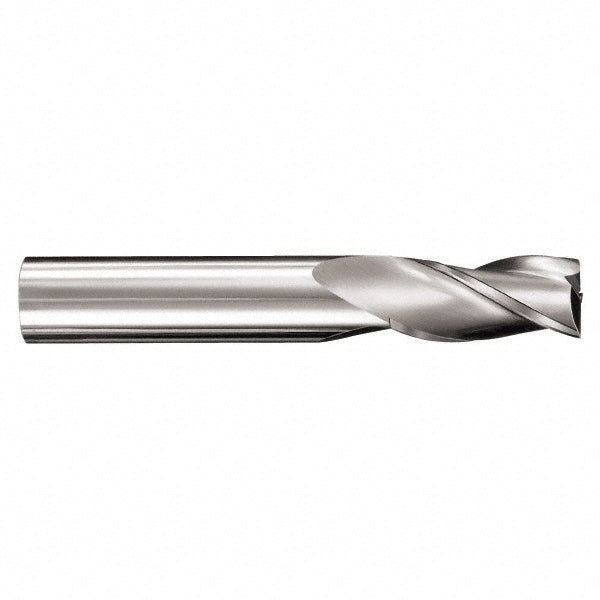

The SGS 39723 is a 3/16 3-flute Solid Carbide (Micrograin) square end mill with a Titanium Nitride finish for longer tool life. 5/8 length of cut, 2 overall length. Series 5.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in5/8

Length of cut range0.6000 - 0.7000

Length typeRegular

Material gradeMicrograin

Mill diameter in3/16

Mill diameter tolerance+0.000/-0.002 in

Number of flutes3

Overall length in2

Shank diameter in3/16

Shank diameter tolerance+0.00000/-0.00032 in

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
