SGS

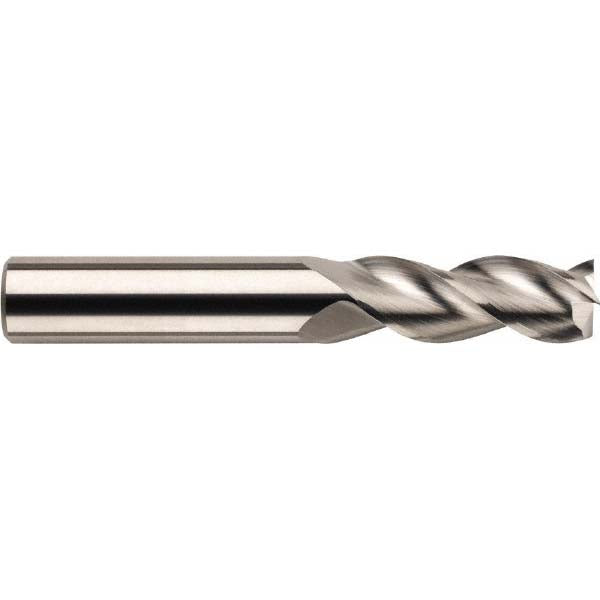

0.4724" 3-Flute Solid Carbide Square End Mill - SGS 44708
MFR# 44708Series 43M
$80.17List $102.82
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The SGS 44708 is a 0.4724 3-flute Solid Carbide (Micrograin) square end mill. Suited for non-ferrous metal. 1.0236 length of cut. Series 43M.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut1.0236
Length of cut range1.0000 - 1.2500
Length typeRegular
Material gradeMicrograin
Mill diameter0.4724
Mill diameter tolerance+0.000/-0.011 mm
Number of flutes3
Overall length (mm)83
Primary workpiece materialNon-Ferrous Metal
Shank diameter0.4724
Shank diameter tolerance+0.000/-0.011 mm
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
Can't find your exact tool?Send us a part number — we'll cross-reference it.
Dull tools?Regrinding extends tool life and saves cost.
