SGS

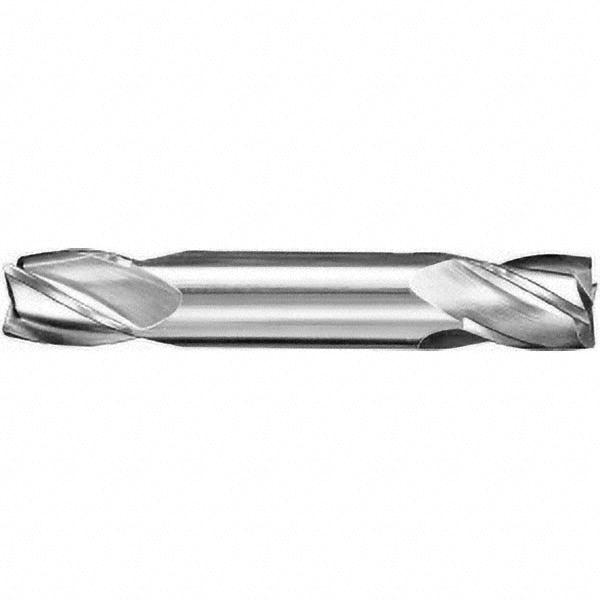

0.1575" 4-Flute Solid Carbide Square End Mill, TiN - SGS 48890

MFR# 48890Series 14M

$30.05List $38.53 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingTiN

Description

The SGS 48890 is a 0.1575 4-flute Solid Carbide (Micrograin) square end mill with a Titanium Nitride finish for longer tool life. 0.315 length of cut. Series 14M.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut0.315

Length of cut range0.3000 - 0.5000

Length typeStub

Material gradeMicrograin

Mill diameter0.1575

Mill diameter tolerance+0.000/-0.050 mm

Number of flutes4

Overall length (mm)50

Shank diameter0.1575

Shank diameter tolerance+0.000/-0.008 mm

Shank typeStraight-Cylindrical

Variable helixNo

Variable indexNo
