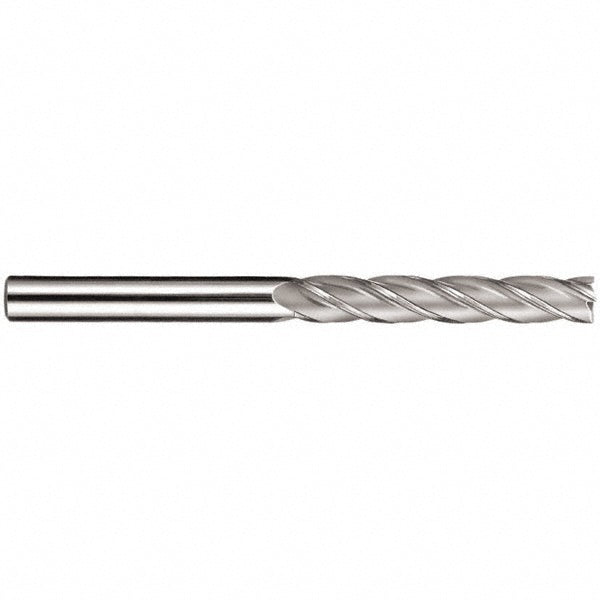

3/16" 4-Flute Solid Carbide Square End Mill, DLC - SGS 93335

SGS

3/16" 4-Flute Solid Carbide Square End Mill, DLC - SGS 93335

MFR# 93335Series 1EL-AD

$78.25List $98.61 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/16
Flutes4
MaterialSolid Carbide
CoatingDLC

Description

The SGS 93335 is a 3/16 4-flute Solid Carbide (Micrograin) square end mill with a DLC finish for longer tool life. 1-1/8 length of cut, 3 overall length. Series 1EL-AD.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishDLC
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-1/8
Length of cut range1.0000 - 1.2500
Length typeExtra Long
Material gradeMicrograin
Mill diameter in3/16
Number of flutes4
Overall length in3
Shank diameter in3/16
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexYes
