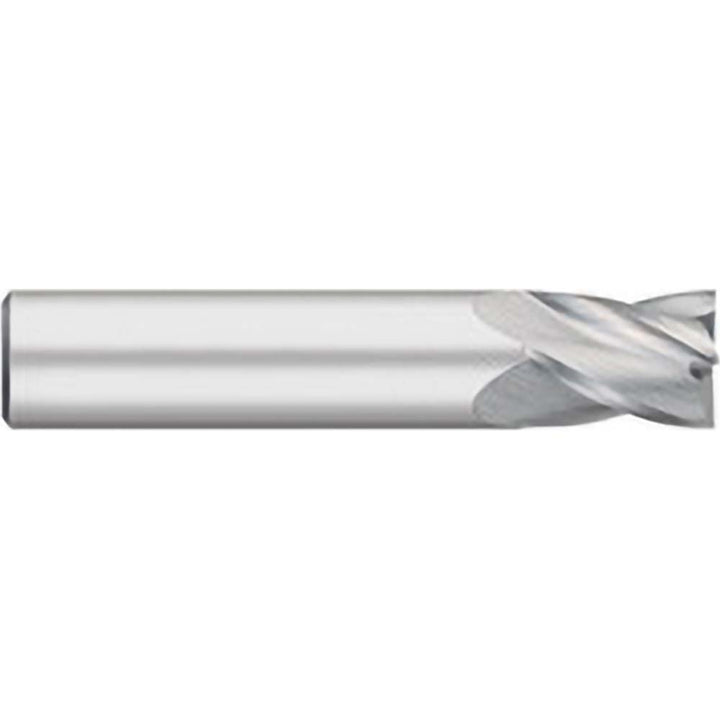

3/32" 4-Flute Solid Carbide Square End Mill - Titan USA TC10606

Titan USA

3/32" 4-Flute Solid Carbide Square End Mill - Titan USA TC10606

MFR# TC10606

$8.67List $11.11 Save 21%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/32
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The Titan USA TC10606 is a 3/32 4-flute Solid Carbide (Micrograin) square end mill. 3/16 length of cut, 1-1/2 overall length.

Specifications

CentercuttingYes
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeUpcut
Helix angle30
Length of cut in3/16
Material gradeMicrograin
Mill diameter in3/32
Number of flutes4
Overall length in1-1/2
Shank diameter in1/8
Variable helixNo
Variable indexNo
