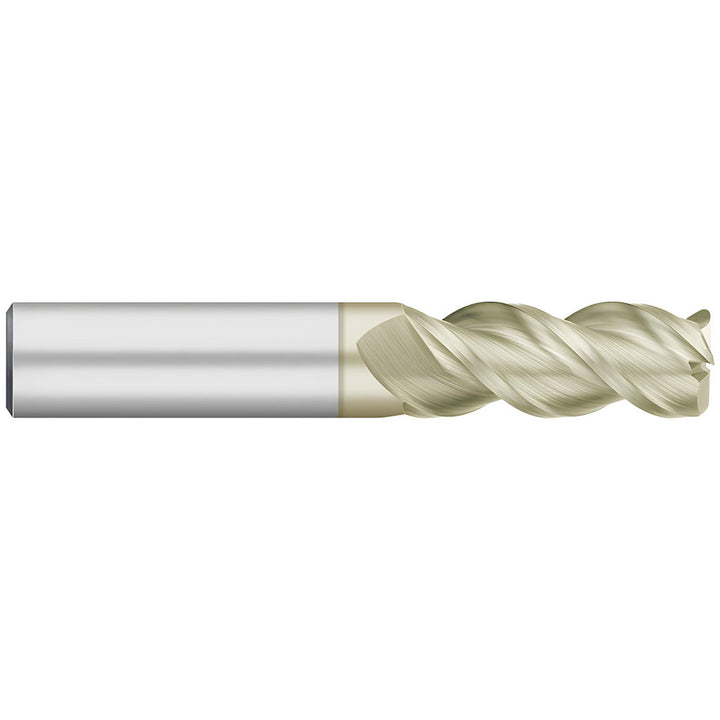

1/4" 3-Flute Solid Carbide Corner Radius End Mill, ZrN - Titan USA TC63604
MFR# TC63604Series TC
$37.97List $47.85
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/4
Flutes3
MaterialSolid Carbide
CoatingZrN
Description
The Titan USA TC63604 is a 1/4 3-flute Solid Carbide corner radius end mill with a ZrN finish for longer tool life. Suited for non-ferrous metal. 1/2 length of cut, 2 overall length. Series TC.
Specifications
CentercuttingYes
ChipbreakerNo
Coating finishZrN
Coolant throughNo
Corner radius0.0200
Corner radius tolerance-0.0010 to 0.0010 in
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeHelical
For use withToolholder
Helix styleHigh
Length of cut in1/2
Length typeStub
Material applicationNon-Ferrous Metal; Aluminum; Brass; Bronze
Material removal typeRoughing
Mill diameter in1/4
Mill diameter tolerance-0.0020 to 0.0000 in
Number of flutes3
Overall length in2
PitchCoarse
Primary workpiece materialNon-Ferrous Metal
Reach length in1/2
Shank diameter in1/4
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
