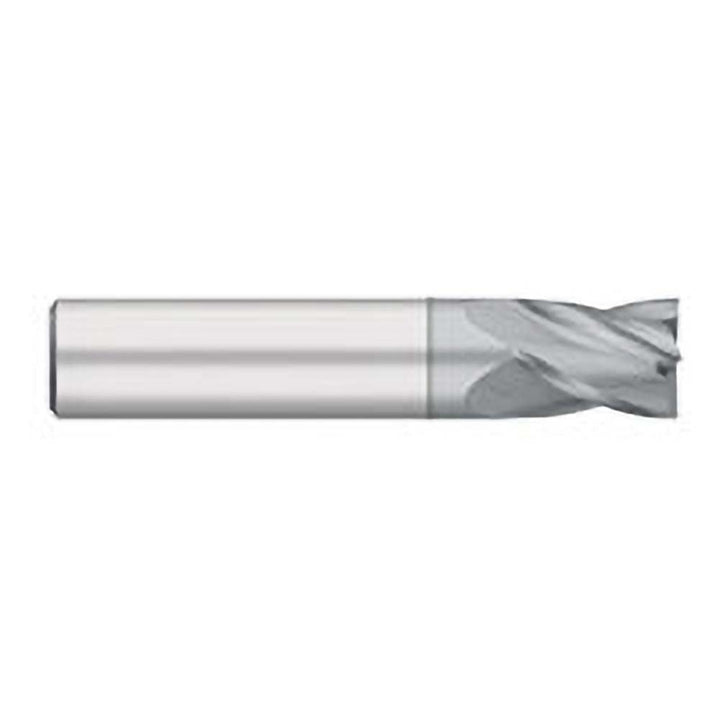

3/32" 4-Flute Solid Carbide Square End Mill, TiCN - Titan USA TC90906

MFR# TC90906

$11.54List $14.80 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/32

Flutes4

MaterialSolid Carbide

CoatingTiCN

Description

The Titan USA TC90906 is a 3/32 4-flute Solid Carbide (Micrograin) square end mill with a TiCN finish for longer tool life. 3/16 length of cut, 1-1/2 overall length.

Specifications

CentercuttingYes

Coating finishTiCN

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeUpcut

Helix angle30

Length of cut in3/16

Length of cut range0.1000 - 0.2000

Material gradeMicrograin

Mill diameter in3/32

Number of flutes4

Overall length in1-1/2

Shank diameter in1/8

Variable helixNo

Variable indexNo
