Weldon

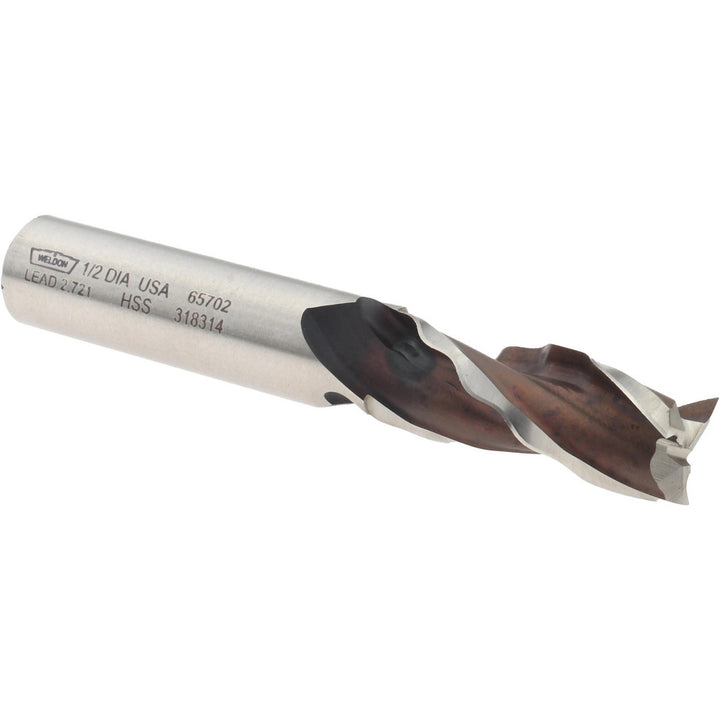

0.5000" 3-Flute High Speed Steel Square End Mill - Weldon 65702-00-W
MFR# 65702-00-W
$34.89List $60.55
Save 42%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes3
MaterialHigh Speed Steel
CoatingBright/Uncoated
Description
The Weldon 65702-00-W is a 0.5000 3-flute High Speed Steel (M7) square end mill. 1-1/4 length of cut.
Specifications
CentercuttingYes
Coating finishBright/Uncoated
Cutting directionRight Hand
End mill materialHigh Speed Steel
End typeSquare
Extended reachNo
Flute directionRight Hand
Helix angle30
Length of cut in1-1/4
Material gradeM7
Maximum helix angle30
Mill diameter0.5000
Mill diameter frac in1/2
Mill diameter tolerance+0.003/-0.003 in
Number of flutes3
Shank diameter in1/2
Shank typeWeldon Flat
Single or double endSingle
