Widia

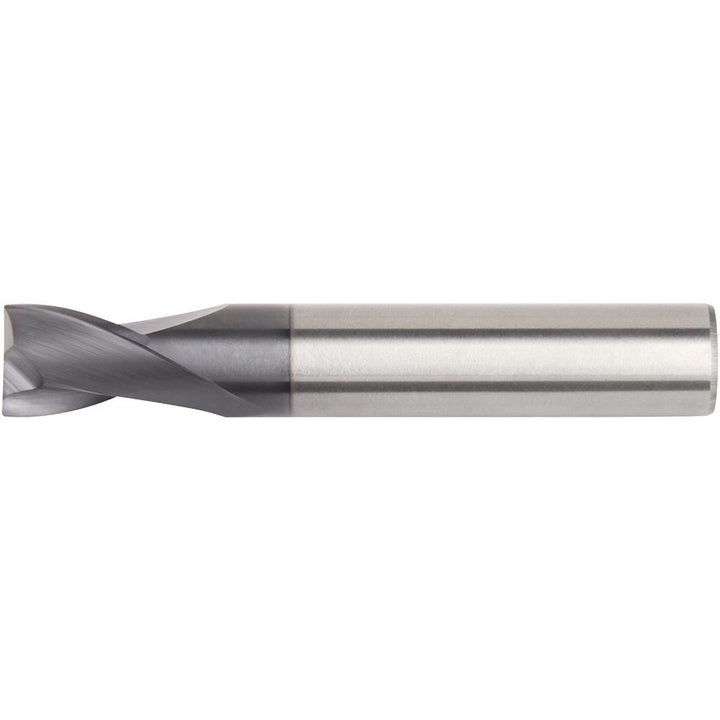

1/4" 2-Flute Solid Carbide Square End Mill, TiAlN - Widia 5872858

MFR# 5872858Series I2S

$23.72List $30.42 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes2

MaterialSolid Carbide

CoatingTiAlN

Description

The Widia 5872858 is a 1/4 2-flute Solid Carbide (TiAlN) square end mill with a TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron. 1/2 length of cut, 2 overall length. Series I2S.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiAlN

Coating finish familyTiAlN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeHelical

Helix angle30

Length of cut in1/2

Length typeRegular

Material gradeTiAlN

Mill diameter in1/4

Neck diameter0.2500

Neck length0.5000

Number of flutes2

Overall length in2

Primary workpiece materialSteel; Stainless Steel; Cast Iron

Secondary workpiece materialHardened Materials; Cast Iron; Stainless Steel; Aluminum & Non-Ferrous; Steel; High-Temp Alloy

Shank diameter in1/4

Shank typeStraight

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexNo
