1/2" 5-Flute Solid Carbide Square End Mill, WU20PE - Widia 7008709

Widia

1/2" 5-Flute Solid Carbide Square End Mill, WU20PE - Widia 7008709

MFR# 7008709Series W501

$75.56List $96.92 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes5
MaterialSolid Carbide
CoatingWU20PE

Description

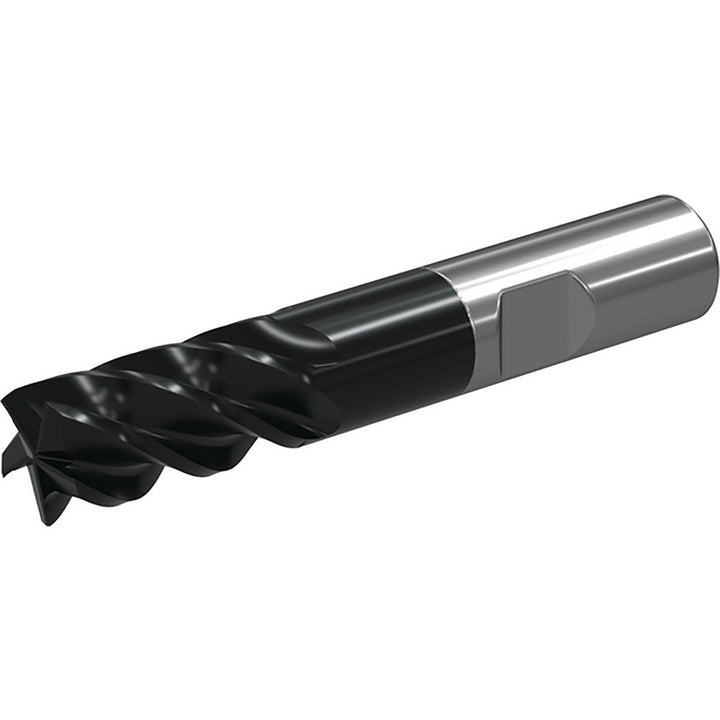

The Widia 7008709 is a 1/2 5-flute Solid Carbide square end mill with a WU20PE finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 1 length of cut, 3 overall length. Series W501.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishWU20PE
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Length of cut in1
Length of cut range1.0000 - 1.5000
Length typeRegular
Material gradeSolid Carbide
Mill diameter in1/2
Neck diameter0.5
Neck length1.0000
Number of flutes5
Overall length in3
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Shank diameter in1/2
Shank typeWeldon Flat
Variable helixNo
Variable indexNo
