1/2" 5-Flute Solid Carbide Square End Mill, WU20PE - Widia 7008715

Widia

1/2" 5-Flute Solid Carbide Square End Mill, WU20PE - Widia 7008715

MFR# 7008715Series W531

$102.20List $131.07 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes5
MaterialSolid Carbide
CoatingWU20PE

Description

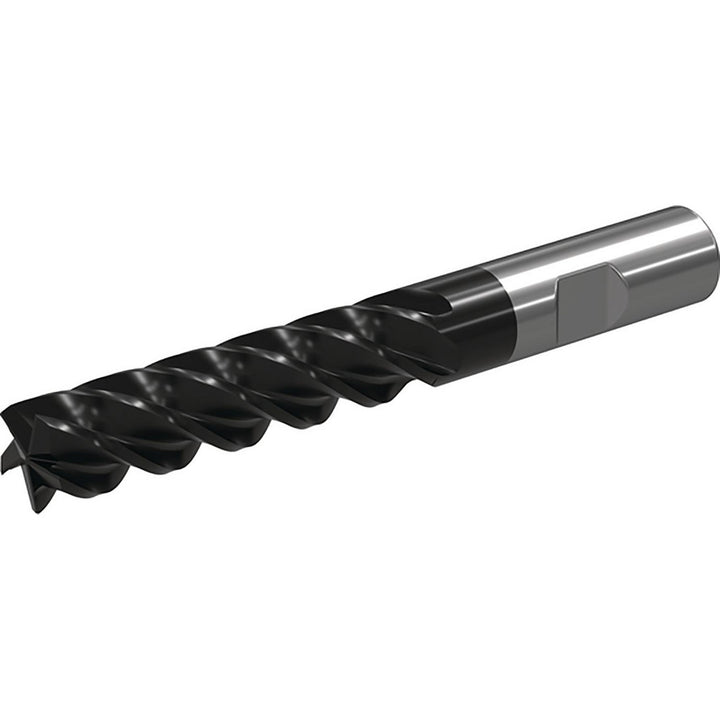

The Widia 7008715 is a 1/2 5-flute Solid Carbide square end mill with a WU20PE finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 2-1/8 length of cut, 4 overall length. Series W531.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishWU20PE
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Length of cut in2-1/8
Length of cut range2.0000+
Length typeRegular
Material gradeSolid Carbide
Mill diameter in1/2
Neck diameter0.5
Neck length2.1250
Number of flutes5
Overall length in4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Shank diameter in1/2
Shank typeWeldon Flat
Variable helixNo
Variable indexNo
