YG-1

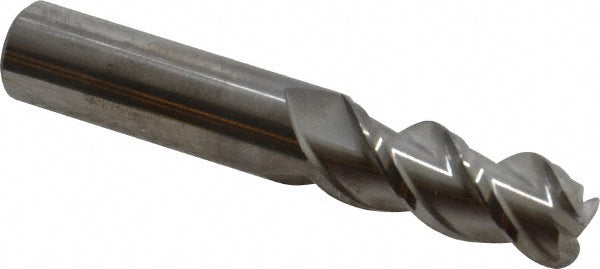

1/2" 3-Flute Solid Carbide Corner Radius End Mill - YG-1 EA20321

MFR# EA20321Series E5981

$92.04List $118.05 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/2

Flutes3

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The YG-1 EA20321 is a 1/2 3-flute Solid Carbide (MG) corner radius end mill. Suited for non-ferrous metal. 1-1/4 length of cut, 3 overall length. Series E5981.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughNo

Corner radius0.1200

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withEnd Mill Toolholders

Helix styleHigh

Length of cut in1-1/4

Length typeStandard

Material applicationNon-Ferrous Metal

Material gradeMG

Material removal typeFinishing

Mill diameter in1/2

Mill diameter tolerance0.0000/0.0005 in

Number of flutes3

Overall length in3

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Shank diameter in1/2

Shank diameter tolerance0.0000/0.0003 in

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
