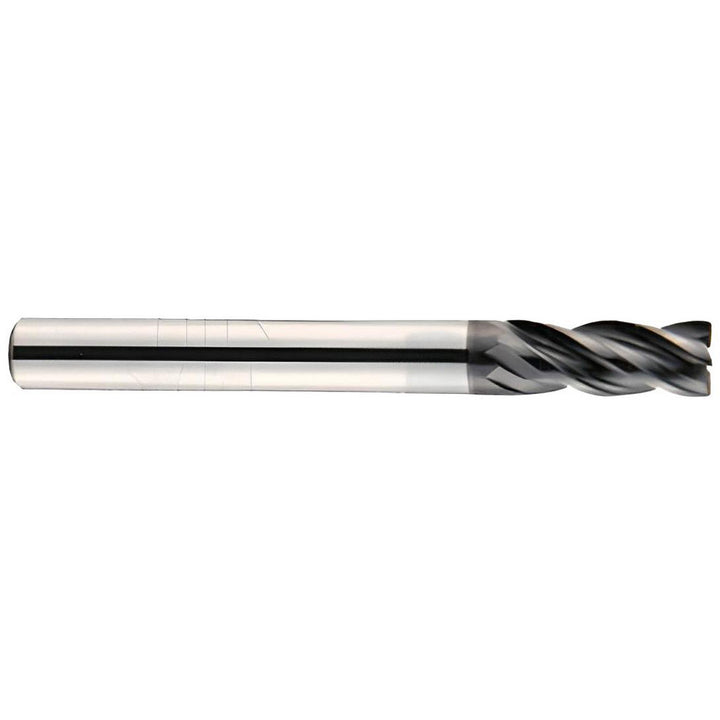

1/2in" 4-Flute Solid Carbide Corner Radius End Mill - YG-1 EMB38032

YG-1

1/2in" 4-Flute Solid Carbide Corner Radius End Mill - YG-1 EMB38032

MFR# EMB38032Series EMB38

$109.46List $140.39 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2in
Flutes4
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The YG-1 EMB38032 is a 1/2in 4-flute Solid Carbide (MG) corner radius end mill. Suited for steel, stainless steel, superalloys & titanium. 1in length of cut, 3 overall length. Series EMB38.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughNo
Corner radius0.0300
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withEnd Mill Toolholders
Length of cut in1in
Length typeStandard
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Material gradeMG
Material removal typeFinishing
Mill diameter in1/2in
Mill diameter tolerance0.0000/0.0012 in
Number of flutes4
Overall length in3
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
Shank diameter in1/2in
Shank diameter toleranceh6
Shank typeWeldon Flat
Single or double endSingle
Variable helixNo
Variable indexNo
