Cleveland

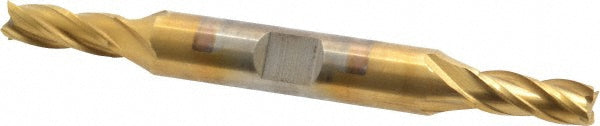

1/4" 4-Flute High Speed Steel Square End Mill, TiN - Cleveland C33067

MFR# C33067Series HD-4C

$44.31List $56.82 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter1/4

Flutes4

MaterialHigh Speed Steel

CoatingTiN

Description

The Cleveland C33067 is a 1/4 4-flute High Speed Steel square end mill. Suited for cast iron, non-ferrous metal, steel. 5/8 length of cut, 3-3/8 overall length. Series HD-4C.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishTiN

Cutting directionRight Hand

End mill materialHigh Speed Steel

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle30

Length of cut in5/8

Length of cut range0.6000 - 0.7000

Length typeRegular

Mill diameter in1/4

Number of flutes4

Overall length in3-3/8

Primary workpiece materialCast Iron; Non-Ferrous Metal; Steel

Shank diameter in3/8

Shank typeStraight-Cylindrical; Weldon Flat

Variable helixNo

Variable indexNo
