5/8" 4-Flute Solid Carbide Square End Mill, TiN - Hertel 750219

Hertel

5/8" 4-Flute Solid Carbide Square End Mill, TiN - Hertel 750219

MFR# 750219

$131.50List $168.65 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes4
MaterialSolid Carbide
CoatingTiN

Description

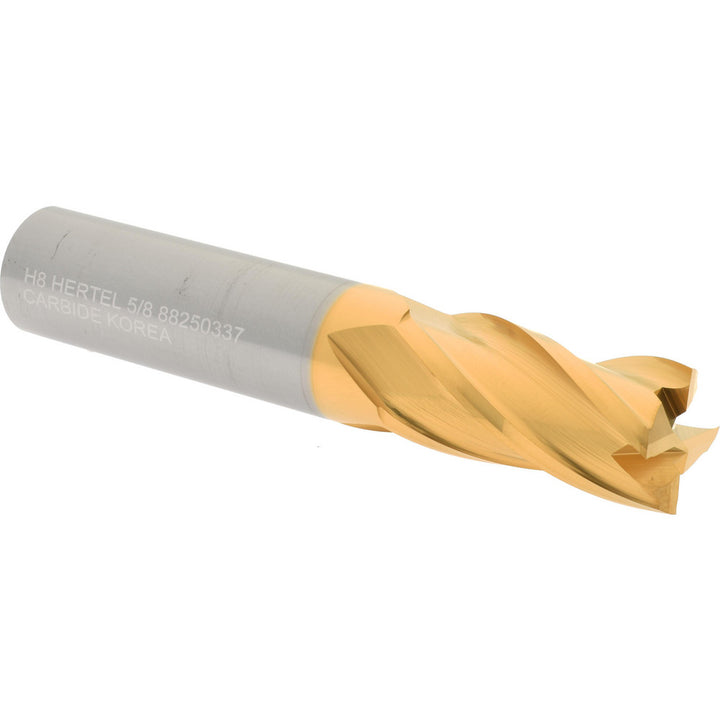

The Hertel 750219 is a 5/8 4-flute Solid Carbide square end mill. 1-1/4 length of cut, 3-1/2 overall length.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Flute typeSpiral
Helix angle30
Length of cut in1-1/4
Length of cut range1.2500 - 1.5000
Mill diameter in5/8
Number of flutes4
Overall length in3-1/2
Shank diameter in5/8
Variable helixNo
Variable indexNo
