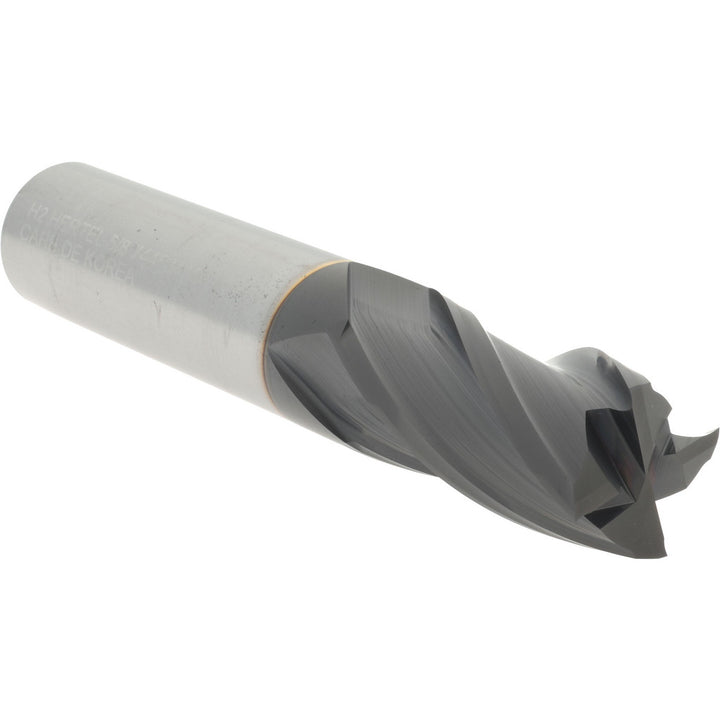

5/8" 4-Flute Solid Carbide Square End Mill, TiCN - Hertel 750274

Hertel

5/8" 4-Flute Solid Carbide Square End Mill, TiCN - Hertel 750274

MFR# 750274

$96.36List $123.58 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes4
MaterialSolid Carbide
CoatingTiCN

Description

The Hertel 750274 is a 5/8 4-flute Solid Carbide (Micrograin) square end mill. 1-1/4 length of cut, 3-1/2 overall length.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-1/4
Length of cut range1.2500 - 1.5000
Length typeRegular
Material gradeMicrograin
Mill diameter in5/8
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in3-1/2
Shank diameter in5/8
Variable helixNo
Variable indexNo
