Iscar

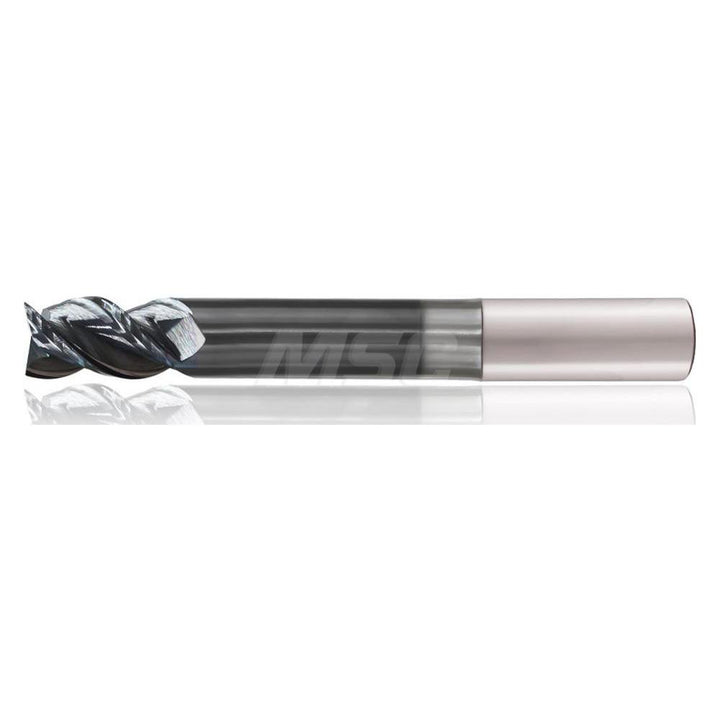

5/8" 4-Flute Solid Carbide Corner Radius End Mill, AlTiCrSiN - Iscar 3398100

MFR# 3398100Cat# ECAI-B3 .375-1CR125-3ECSeries ECI-4-VF

$147.19List $176.50 Save 16%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8

Flutes4

MaterialSolid Carbide

CoatingAlTiCrSiN

Description

The Iscar 3398100 is a 5/8 4-flute Solid Carbide (Submicron) corner radius end mill with a AlTiCrSiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 1-1/4 length of cut, 3-1/2 overall length. Series ECI-4-VF.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiCrSiN

Coolant throughNo

Corner radius0.1250

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeSpiral; Helical

For use withToolholder

Length of cut in1-1/4

Length typeShort

Manufacturers catalog numberECAI-B3 .375-1CR125-3EC

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Material gradeSubmicron

Material removal typeRoughing & Finishing

Mill diameter in5/8

Number of flutes4

Overall length in3-1/2

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Reach length in1-1/4

Shank diameter in5/8

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexYes
