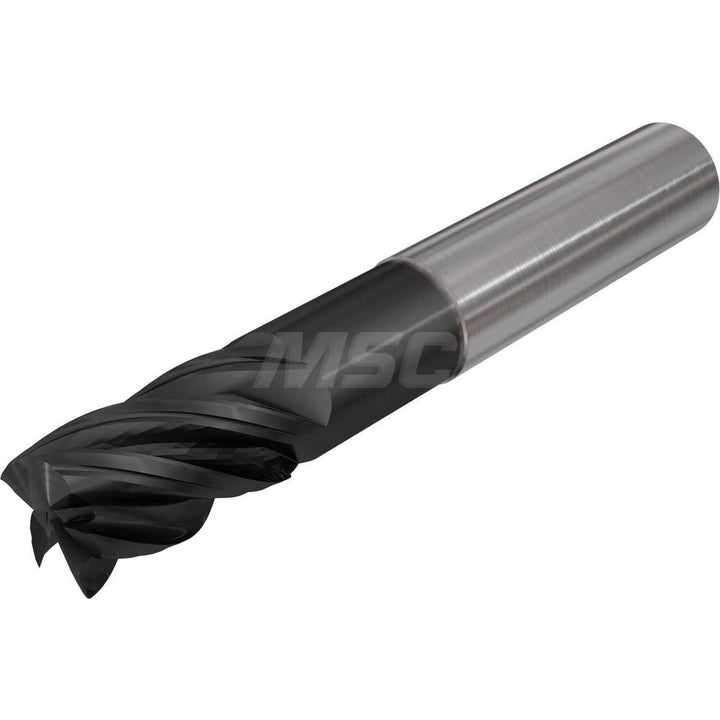

5/8" 4-Flute Solid Carbide Square End Mill, TiAlCN - Iscar 3398327

Iscar

5/8" 4-Flute Solid Carbide Square End Mill, TiAlCN - Iscar 3398327

MFR# 3398327

$125.68List $150.70 Save 16%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes4
MaterialSolid Carbide
CoatingTiAlCN

Description

The Iscar 3398327 is a 5/8 4-flute Solid Carbide (Submicron) square end mill with a TiAlCN finish for longer tool life. 1-1/4 length of cut, 3-1/2 overall length.

Specifications

CentercuttingYes
Coating finishTiAlCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle38
Length of cut in1-1/4
Material gradeSubmicron
Mill diameter in5/8
Number of flutes4
Overall length in3-1/2
Shank diameter in5/8
Variable helixNo
Variable indexYes
