Iscar

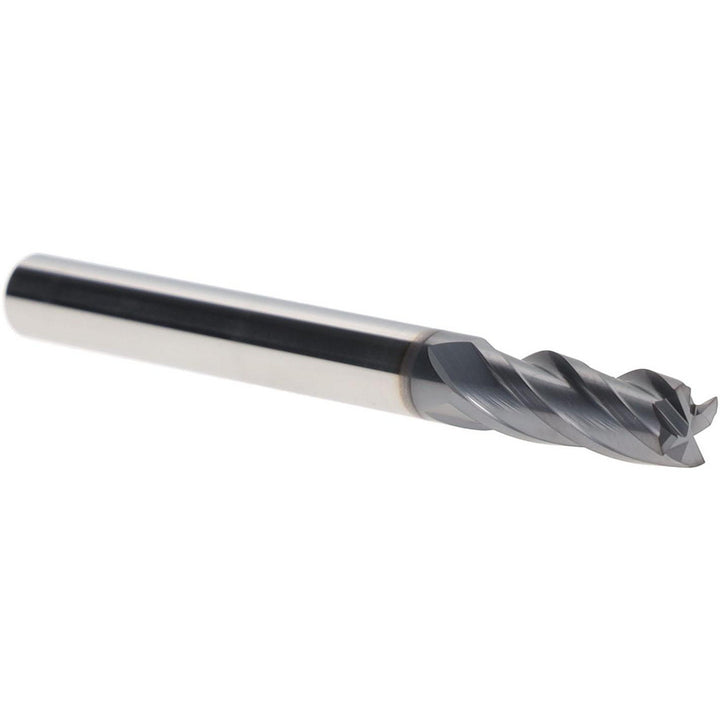

1/4" 4-Flute Solid Carbide Square End Mill, TiAlN - Iscar 5620904
MFR# 5620904
$42.87List $54.90
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/4
Flutes4
MaterialSolid Carbide
CoatingTiAlN
Description
The Iscar 5620904 is a 1/4 4-flute Solid Carbide (IC900) square end mill. 5/8 length of cut, 2-1/2 overall length.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in5/8
Length of cut range0.6000 - 0.7000
Length typeRegular
Material gradeIC900
Mill diameter in1/4
Number of flutes4
Overall length in2-1/2
Shank diameter in1/4
Shank typeStraight-Cylindrical
Variable helixNo
Variable indexNo
