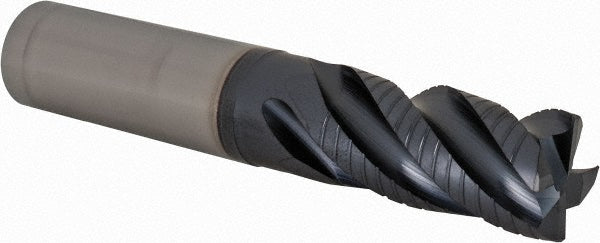

0.6250" 4-Flute Solid Carbide Roughing End Mill, TiAlN - Iscar 5622308

Iscar

0.6250" 4-Flute Solid Carbide Roughing End Mill, TiAlN - Iscar 5622308

MFR# 5622308Series Solid Mill

$236.18List $297.20 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingTiAlN

Description

The Iscar 5622308 is a 0.6250 4-flute Solid Carbide (Submicron) roughing end mill with a TiAlN finish for longer tool life. Series Solid Mill.

Specifications

CentercuttingNo
Chamfer angle45
Chamfer width0.0200
Coating finishTiAlN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut1.2500
Length typeRegular
Material gradeSubmicron
Maximum helix angle38
Mill diameter0.6250
Mill diameter frac in5/8
Number of flutes4
Reach length1.8700
Shank diameter in5/8
Shank typeStraight-Cylindrical
Single or double endSingle
