Iscar

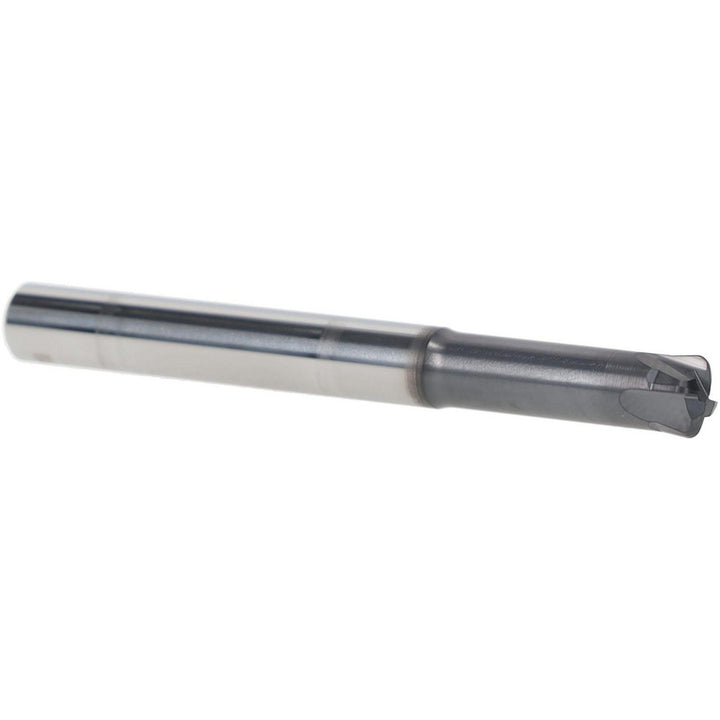

0.2362" 4-Flute Solid Carbide Corner Radius End Mill, TiAlN - Iscar 5622469

MFR# 5622469Series EFF-S2/S4/S6

$64.42List $82.50 Save 21%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingTiAlN

Description

The Iscar 5622469 is a 0.2362 4-flute Solid Carbide (Ultra Fine Grain) corner radius end mill with a TiAlN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. Series EFF-S2/S4/S6.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishTiAlN

Coolant throughNo

Corner radius0.0484

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachYes

Flute directionRight Hand

Flute typeSpiral

For use withToolholder

Length of cut0.0118

Length typeStub

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Material gradeUltra Fine Grain

Material removal typeRoughing & Finishing

Mill diameter0.2362

Mill diameter tolerancee9

Number of flutes4

Overall length (mm)57.00

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Reach length (mm)20.00

Shank diameter (mm)6.00

Shank diameter toleranceh6

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
