0.3937" 3-Flute Solid Carbide Corner Radius End Mill - Iscar 5623177

Iscar

0.3937" 3-Flute Solid Carbide Corner Radius End Mill - Iscar 5623177

MFR# 5623177Series Chatter Free

$250.79List $315.60 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes3
MaterialSolid Carbide
CoatingBright/Uncoated

Description

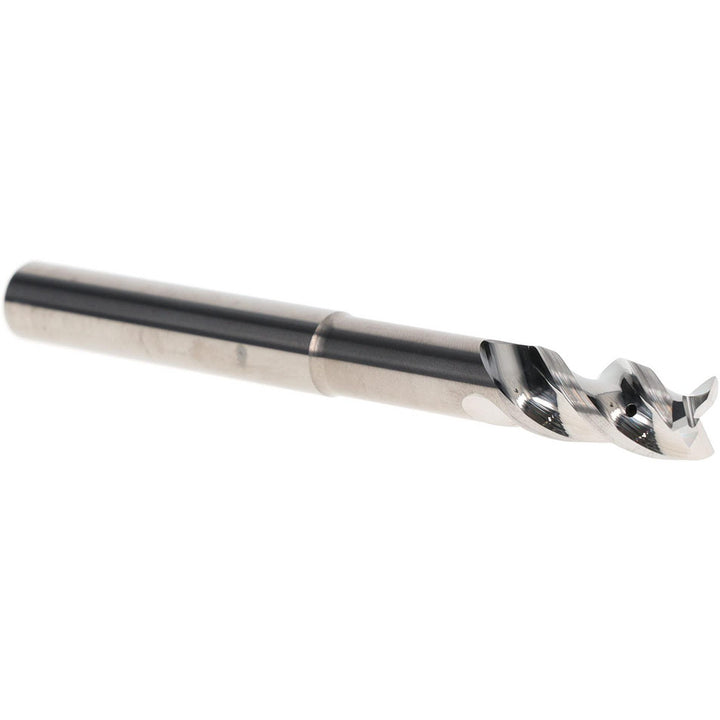

The Iscar 5623177 is a 0.3937 3-flute Solid Carbide (Fine Grain) corner radius end mill. 0.7874 length of cut. Series Chatter Free.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishBright/Uncoated
Corner radius0.0079
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachYes
Flute directionRight Hand
Helix angle39
Length of cut0.7874
Length typeRegular
Material gradeFine Grain
Maximum helix angle41
Mill diameter0.3937
Mill diameter toleranceh6
Minimum helix angle39
Number of flutes3
Radius (mm)0.20
Reach length1.9700
Shank diameter (mm)10.00
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
Can't find your exact tool?Send us a part number — we'll cross-reference it. Dull tools?Regrinding extends tool life and saves cost.

Alternate & equivalent tools

Matched on diameter, flute count, and material. Need a specific brand or coating? Cross-reference this tool.

SGS0.3937" 3-Flute Solid Carbide Square End Mill, TiB2 - SGS 44719 $97.55 SGS0.3937" 3-Flute Solid Carbide Square End Mill - SGS 44705 $82.22 Kennametal0.3937" 3-Flute Solid Carbide Corner Radius End Mill - Kennametal 3637415 $241.24 OSG0.3937" 3-Flute Solid Carbide Square End Mill - OSG 403-3937 $34.15
