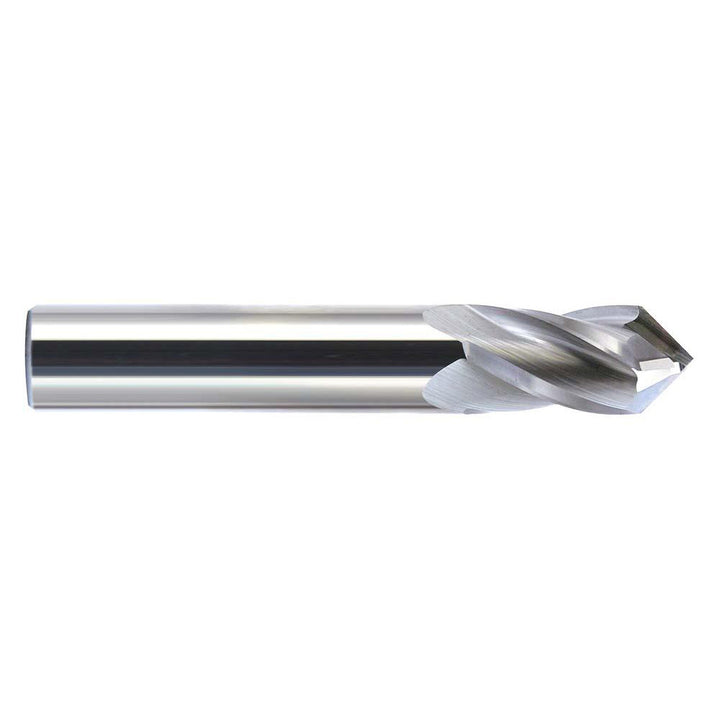

5/8" 4-Flute Solid Carbide Drill Mill End Mill - Melin Tool 11643

Melin Tool

5/8" 4-Flute Solid Carbide Drill Mill End Mill - Melin Tool 11643

MFR# 11643Series CCMG-__-DP

$146.92List $185.15 Save 20%
Stock and current price confirmed on request. Ask us →

We check the supplier's stock and today's price for this item before you order, and reply the same business day.

Check price & lead time first →
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes4
MaterialSolid Carbide
CoatingUncoated

Description

The Melin Tool 11643 is a 5/8 4-flute Solid Carbide (Micrograin) drill mills end mill. 1-1/4 length of cut, 3-1/2 overall length. Series CCMG-__-DP.

Specifications

Coating finishUncoated
Cutting directionRight Hand
End mill materialSolid Carbide
Flute directionRight Hand
Helix angle30
Length of cut in1-1/4
Material gradeMicrograin
Mill diameter in5/8
Mill diameter tolerance+0.000/-0.002 in
Number of flutes4
Overall length in3-1/2
Point angle90
Primary material applicationChamfering; Countersinking; Drilling; Side Milling; Spotting
Shank diameter in5/8
Shank diameter tolerance+0.0000 - -0.0020 in
