Melin Tool

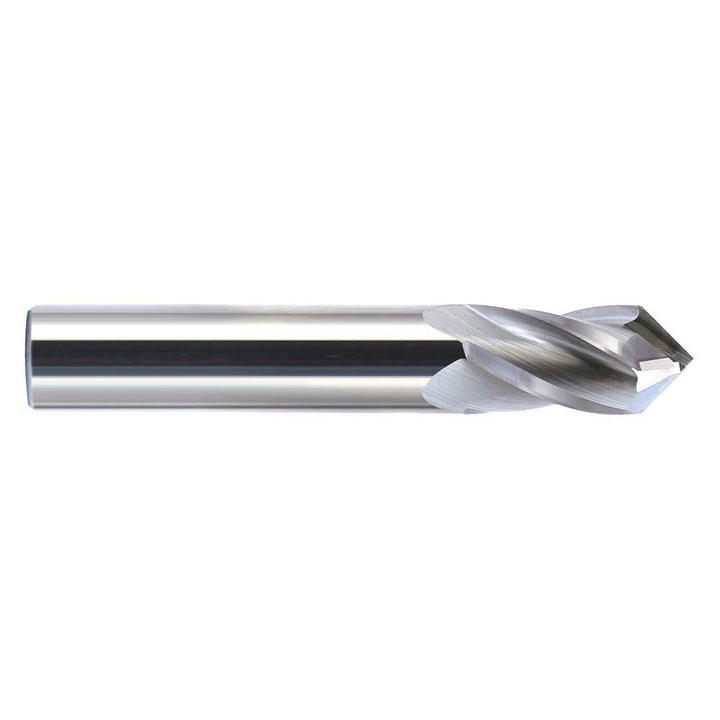

5/8" 4-Flute Solid Carbide Drill Mill End Mill, AlTiN - Melin Tool 51643

MFR# 51643Series CCMG-__-DP

$164.46List $210.93 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The Melin Tool 51643 is a 5/8 4-flute Solid Carbide (Micrograin) drill mills end mill with a AlTiN finish for longer tool life. 1-1/4 length of cut, 3-1/2 overall length. Series CCMG-__-DP.

Specifications

Coating finishAlTiN

Cutting directionRight Hand

End mill materialSolid Carbide

Flute directionRight Hand

Helix angle30

Length of cut in1-1/4

Material gradeMicrograin

Mill diameter in5/8

Mill diameter tolerance+0.000/-0.002 in

Number of flutes4

Overall length in3-1/2

Point angle90

Primary material applicationChamfering; Countersinking; Drilling; Side Milling; Spotting

Shank diameter in5/8

Shank diameter tolerance+0.0000 - -0.0020 in
