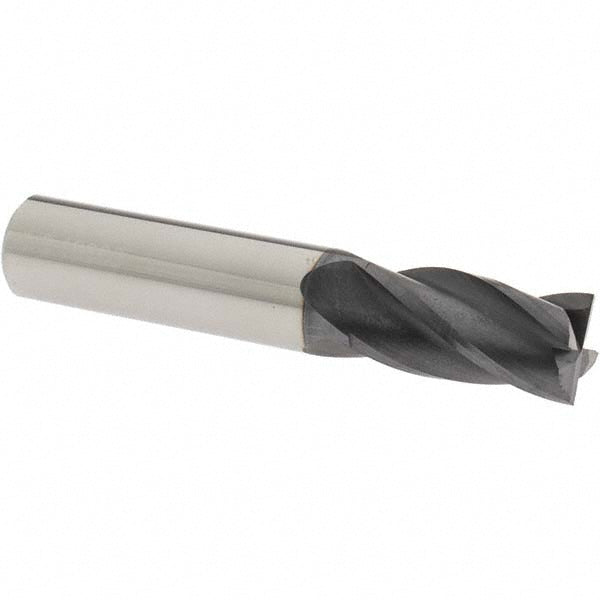

5/8" 4-Flute Solid Carbide Square End Mill, TiAlN - OSG 404-625011

OSG

5/8" 4-Flute Solid Carbide Square End Mill, TiAlN - OSG 404-625011

MFR# 404-625011Series 404

$117.38List $150.55 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes4
MaterialSolid Carbide
CoatingTiAlN

Description

The OSG 404-625011 is a 5/8 4-flute Solid Carbide (Micrograin) square end mill. 1-1/4 length of cut, 3-1/2 overall length. Series 404.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiAlN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in1-1/4
Length typeRegular
Material gradeMicrograin
Mill diameter in5/8
Mill diameter tolerance+0.000/-0.001 in
Number of flutes4
Overall length in3-1/2
Shank diameter in5/8
Shank diameter tolerance+0.00000/-0.0005 in
Variable helixNo
Variable indexNo
