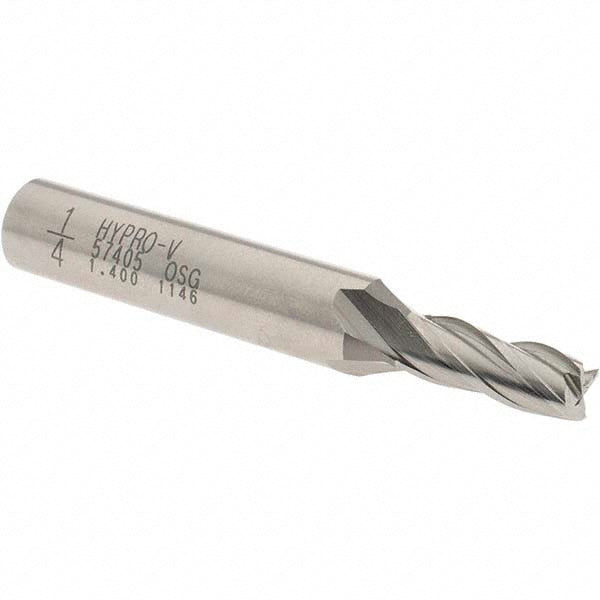

1/4" 4-Flute Vanadium High Speed Steel Square End Mill - OSG 5740500

OSG

1/4" 4-Flute Vanadium High Speed Steel Square End Mill - OSG 5740500

MFR# 5740500Series 574

$20.01List $25.66 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4
Flutes4
MaterialVanadium High Speed Steel

Description

The OSG 5740500 is a 1/4 4-flute Vanadium High Speed Steel (3% Vanadium) square end mill. 5/8 length of cut, 2-7/16 overall length. Series 574.

Specifications

CentercuttingYes
ChipbreakerNo
Cutting directionRight Hand
End mill materialVanadium High Speed Steel
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle30
Length of cut in5/8
Length typeRegular
Material grade3% Vanadium
Mill diameter in1/4
Number of flutes4
Overall length in2-7/16
Shank diameter in3/8
Variable helixNo
Variable indexNo
