5/8" 5-Flute Solid Carbide Square End Mill, TiCN - ProMax 112-04012

ProMax

5/8" 5-Flute Solid Carbide Square End Mill, TiCN - ProMax 112-04012

MFR# 112-04012Series 112

$123.99List $159.03 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes5
MaterialSolid Carbide
CoatingTiCN

Description

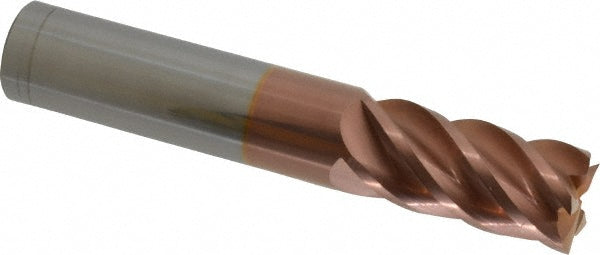

The ProMax 112-04012 is a 5/8 5-flute Solid Carbide (Micrograin) square end mill. 1-1/4 length of cut, 3-1/2 overall length. Series 112.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishTiCN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix angle40
Length of cut in1-1/4
Length typeRegular
Material gradeMicrograin
Mill diameter in5/8
Mill diameter tolerance+0.000/-0.002 in
Number of flutes5
Overall length in3-1/2
Shank diameter in5/8
Shank diameter tolerance-0.0001/-0.0004 in
Shank typeSquare
Variable helixNo
Variable indexNo
