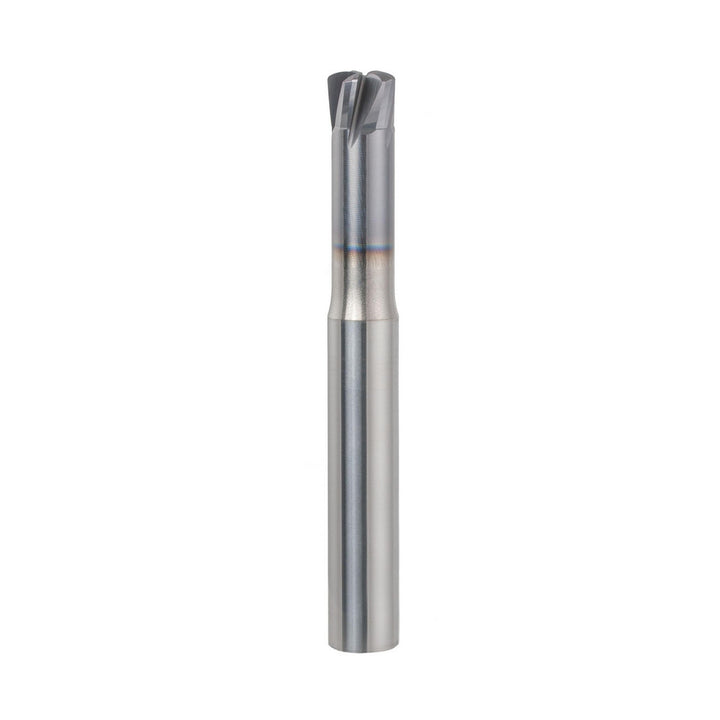

3/8" 5-Flute Solid Carbide High-Feed End Mill, AlTiN - Seco 03043610

MFR# 03043610Series SN500R

$199.60List $256.00 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes5

Description

The Seco 03043610 is a 3/8 5-flute Solid Carbide (Micrograin) high-feed end mill with a AlTiN finish for longer tool life. 0.0180 length of cut, 3 overall length. Series SN500R.

Specifications

CentercuttingNo

ChipbreakerNo

Cutting directionRight Hand

Extended reachYes

Finish coatingAlTiN

Flute directionRight Hand

Flute typeStraight

Helix angle0

Length of cut in0.0180

Length typeStub

MaterialSolid Carbide

Material gradeMicrograin

Mill diameter in3/8

Neck diameter0.3290

Number of flutes5

Overall length in3

Program radius0.0432

Reach length in1-1/8

Shank diameter in3/8

Shank typeCylindrical

Single or double endSingle
