5/8" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 36536

SGS

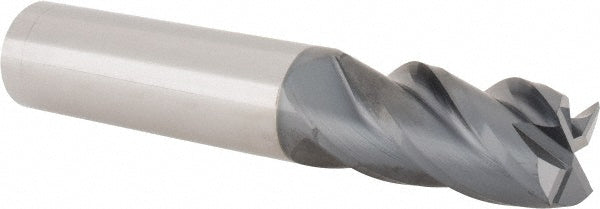

5/8" 4-Flute Solid Carbide Square End Mill, AlTiN - SGS 36536

MFR# 36536Series Z1

$181.21List $232.41 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter5/8
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The SGS 36536 is a 5/8 4-flute Solid Carbide (Micrograin) square end mill. 1-1/4 length of cut, 3-1/2 overall length. Series Z1.

Specifications

CentercuttingYes
ChipbreakerNo
Coating finishAlTiN
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut in1-1/4
Length of cut range1.2500 - 1.5000
Length typeRegular
Material gradeMicrograin
Mill diameter in5/8
Mill diameter tolerance+0.0000/-0.0020 in
Number of flutes4
Overall length in3-1/2
Shank diameter in5/8
Shank diameter tolerance+0.00000/-0.00043 in
Shank typeWeldon Flat
Variable helixYes
Variable indexYes
