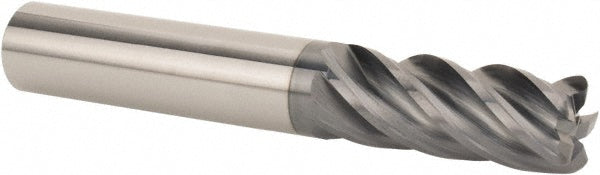

0.625" 5-Flute Solid Carbide Roughing End Mill, AlTiN - SGS 37200

SGS

0.625" 5-Flute Solid Carbide Roughing End Mill, AlTiN - SGS 37200

MFR# 37200Series Z5CR

$210.12List $269.49 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes5
MaterialSolid Carbide
CoatingAlTiN

Description

The SGS 37200 is a 0.625 5-flute Solid Carbide roughing end mill with a AlTiN finish for longer tool life. Series Z5CR.

Specifications

CentercuttingNo
Coating finishAlTiN
Coolant throughNo
Corner radius0.0300
Corner radius tolerance+0.00000 to -0.00200 in
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Length of cut1.2500
Length typeRegular
Maximum helix angle37
Mill diameter0.625
Mill diameter frac in5/8
Mill diameter tolerance+0.000000 to -0.002000 in
Number of flutes5
PitchVariable
Shank diameter in5/8
Shank diameter toleranceh6
Shank typeStraight-Cylindrical
Single or double endSingle
