SGS

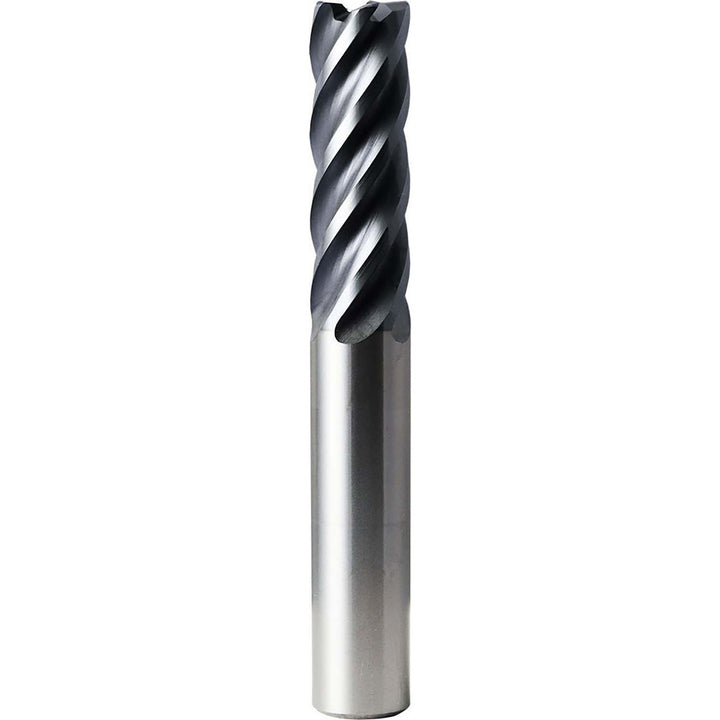

3/8" 5-Flute Solid Carbide Square End Mill, AlTiN - SGS 37470

MFR# 37470Series Z5S

$66.74List $85.60 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/8

Flutes5

MaterialSolid Carbide

CoatingAlTiN

Description

The SGS 37470 is a 3/8 5-flute Solid Carbide (Micrograin) square end mill with a Ti-NAMITE-A finish for longer tool life. Suited for steel, stainless steel, cast iron, high-temp alloy. 1-1/8 length of cut, 3 overall length. Series Z5S.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishAlTiN

Coating finish familyAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix angle37

Length of cut in1-1/8

Length typeStub

Material gradeMicrograin

Mill diameter in3/8

Number of flutes5

Overall length in3

Primary workpiece materialSteel; Stainless Steel; Cast Iron; High-Temp Alloy

Shank diameter in3/8

Shank typeStraight

Single or double endSingle

System of measurementFractional Inch

Variable helixNo

Variable indexYes
